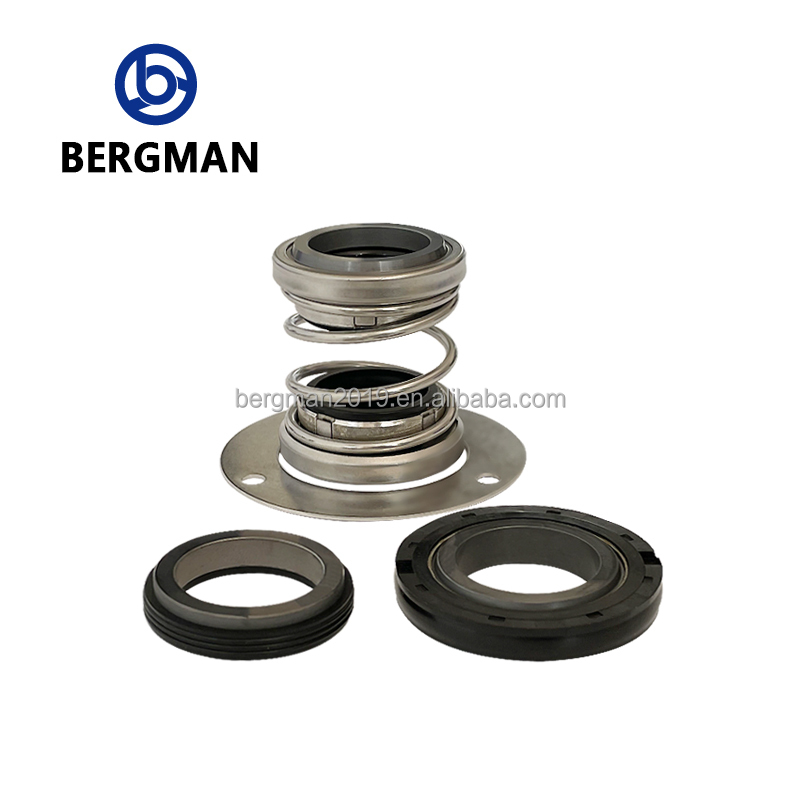

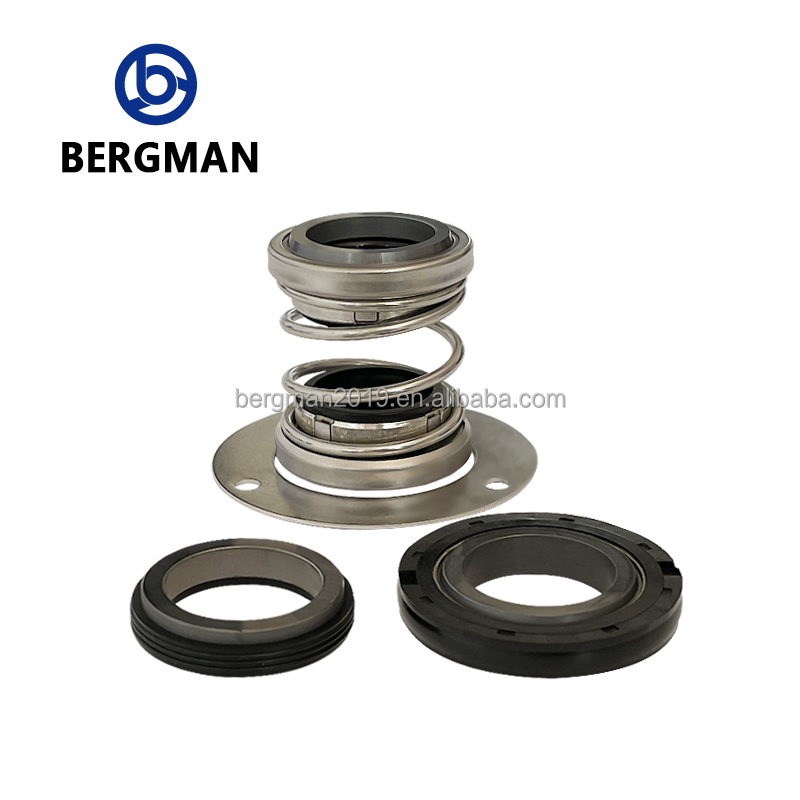

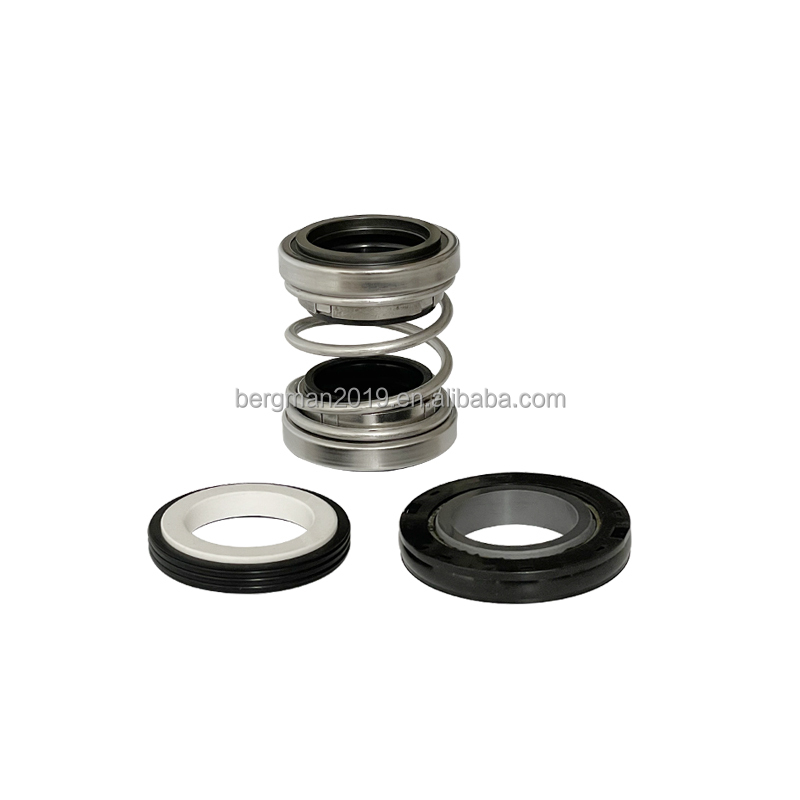

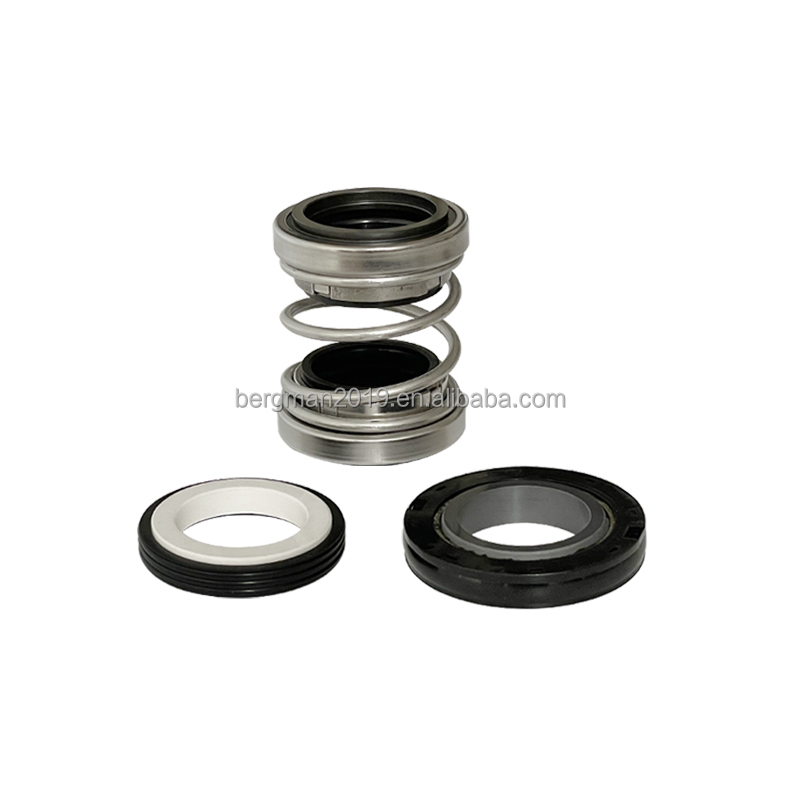

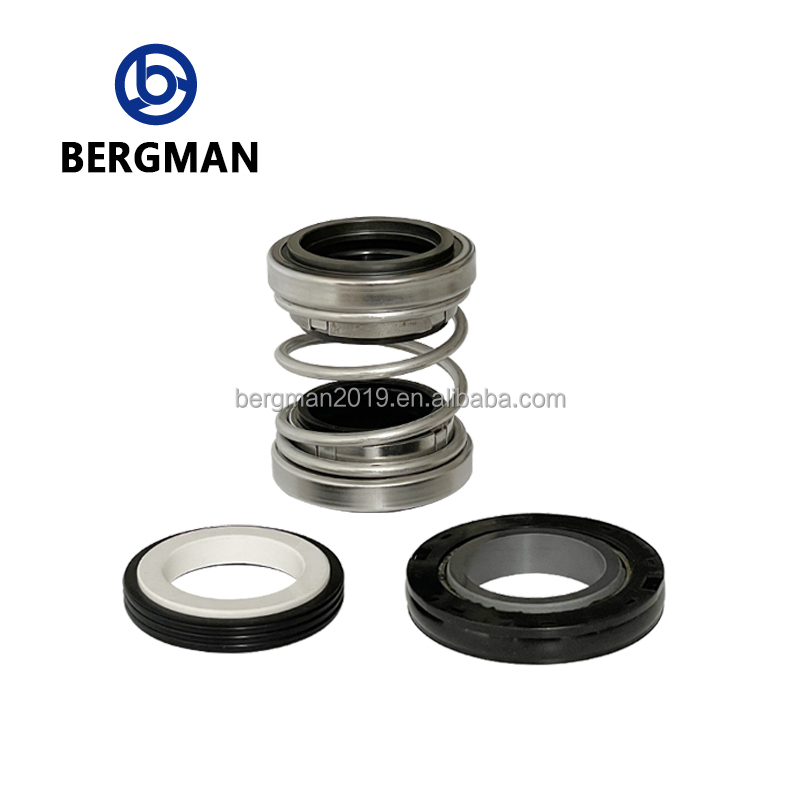

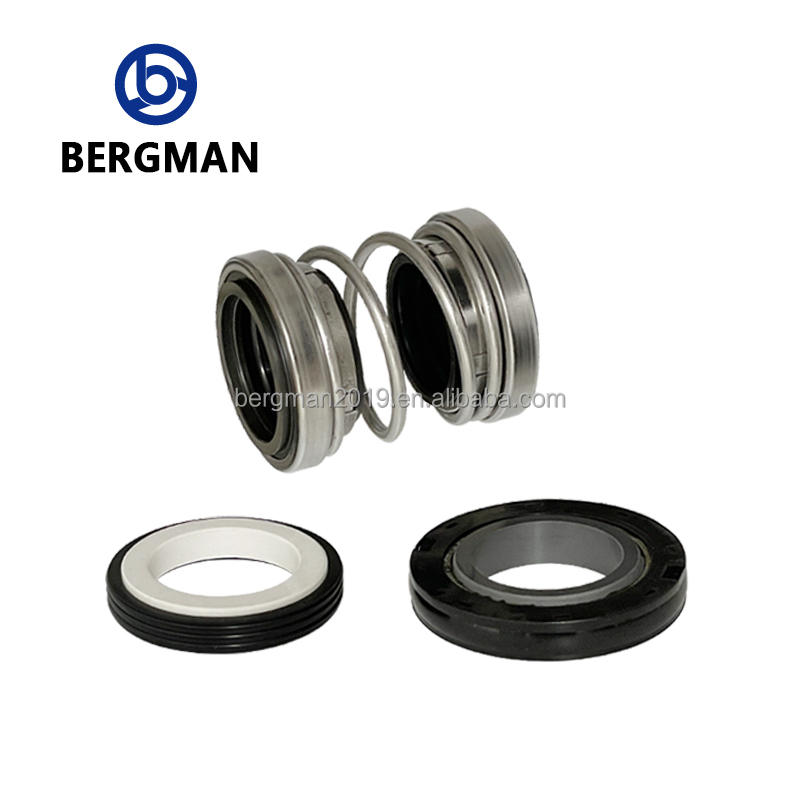

BERGMAN 560D-25mm Rotary Pump Mechanical Seal for WQ Submersible Pumps

  • BERGMAN 560D-25mm Rotary Pump Mechanical Seal for WQ Submersible Pumps
  • BERGMAN 560D-25mm Rotary Pump Mechanical Seal for WQ Submersible Pumps
  • BERGMAN 560D-25mm Rotary Pump Mechanical Seal for WQ Submersible Pumps
  • BERGMAN 560D-25mm Rotary Pump Mechanical Seal for WQ Submersible Pumps
  • BERGMAN 560D-25mm Rotary Pump Mechanical Seal for WQ Submersible Pumps
  • BERGMAN 560D-25mm Rotary Pump Mechanical Seal for WQ Submersible Pumps
Place of Origin CN:GUANGZHOU
Nom de marque BERGMAN
Model Number 560D
Minimum Order Quantity 1
Prix $10-16

Contactez-moi pour des aperçus gratuits et des bons.

whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Si vous avez n'importe quel souci, nous fournissons l'aide en ligne de 24 heures.

x
Détails sur le produit
Size 25mm Model 560D
Pressure limit ≤ 0.3mpa Temperature range -20°C-70°C
Line speed ≤ 5m/s Face material CAR SIC
Seat material CER SIC Secondary seal NBR VITON
Metal parts SS304 SS316 Shaft sizes 25/30, 30/35, 40/45, 45/50
Standard sizes 14/15/16mm, 17/18/19mm, 20/25/30mm, 35/40/45mm, 50/60/70mm Max temperature 120°C (depends on O-ring)
Max line speed ≤ 10m/s Application type Rotary pump
Seal materials Tungsten carbide, silicon carbide, carbon graphite, alumina
Mettre en évidence

BERGMAN 560D mechanical seal

,

25mm rotary pump seal

,

WQ submersible pump seal
Laisser un message
Description de produit
Spot High-quality ED 560D-25mm Facing Size EBARA Kawami WQ Submersible Pump Mechanical Seal
Product Specifications
Size 25mm
Country of Origin Guangzhou, China
Brand BERGMAN
Product Name Mechanical Seal
Model 560D
Application Rotary Pump
Pressure ≤ 0.3mpa
Temperature ≤ -20°C-70°C
Line Speed ≤ 5m/s
Service OEM Customization Service
Product Details
Manufactured by Guangzhou Bergman Mechanical Seals Co., Ltd., this mechanical seal is designed for optimal performance in demanding industrial applications.
Technical Specifications
  • Standard sizes available: 14/15/16mm, 17/18/19mm, 20/25/30mm, 35/40/45mm, 50/60/70mm
  • Face material: CAR SIC
  • Seat material: CER SIC
  • Secondary seal options: NBR, VITON
  • Metal parts: SS304, SS316
  • Certification: ISO9001-2015
Applications
  • Models: ED560, 560D, 560DE
  • Compatible with Ebara pump, Southern pump, Hejian pump and most WQ submersible pumps
  • Can replace Burgman, John Crane, AES and other world-renowned brand water pump seals
Our Advantages
We utilize wear-resistant materials including tungsten carbide, silicon carbide, carbon graphite, alumina, rubber seals, PTFE seals, and O-rings for superior durability.
BERGMAN 560D-25mm Rotary Pump Mechanical Seal for WQ Submersible Pumps 0 BERGMAN 560D-25mm Rotary Pump Mechanical Seal for WQ Submersible Pumps 1
Company Profile
Guangzhou Bogman Mechanical Seals Co., Ltd. (formerly Guangzhou Yongfa Mechanical Seals Co., Ltd.) was established in 1996 and has grown to become a leading manufacturer of mechanical seals with ISO9001:2015 certification.
Our product range includes pump mechanical seals, fluid mechanical seals, metal bellows mechanical seals, container mechanical seals, and various sealing materials including cemented carbide, silicon carbide, carbon graphite, and alumina.
BERGMAN 560D-25mm Rotary Pump Mechanical Seal for WQ Submersible Pumps 2
Exhibition and Warehouse
We maintain over 2,000 square meters of spot warehouse with more than a thousand product varieties available for immediate shipment.
BERGMAN 560D-25mm Rotary Pump Mechanical Seal for WQ Submersible Pumps 3 BERGMAN 560D-25mm Rotary Pump Mechanical Seal for WQ Submersible Pumps 4
Production Capabilities
Our modern production facility features advanced machine tools, dust-free workshops, and comprehensive inspection equipment to ensure every mechanical seal meets strict quality standards.
BERGMAN 560D-25mm Rotary Pump Mechanical Seal for WQ Submersible Pumps 5
Application Range
Our mechanical seals are widely used in pipeline pumps, centrifugal pumps, sewage pumps, and chemical pumps across industries including petroleum, chemical, aerospace, pharmaceutical, food, and agricultural irrigation.
BERGMAN 560D-25mm Rotary Pump Mechanical Seal for WQ Submersible Pumps 6
Frequently Asked Questions
Q: Are you a factory or a trader?
A: We are a production factory with our own international trade department.
Q: Where is your factory located?
A: Our factory is located in Guangzhou City, near Guangzhou Port and Shenzhen Port.
Q: How many days is your delivery time?
A: Stock items ship immediately after payment. Custom items require 10-25 days production time.
Contact Information
International Trade:
Li Wei: +86-15622176299
Yang Yingjie: WeChat/WhatsApp +86-15627223988
Yang Aijun: WeChat/WhatsApp +86-13602719849
Email: bergman168@outlook.com
