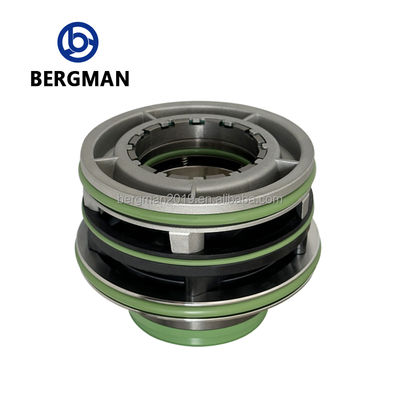

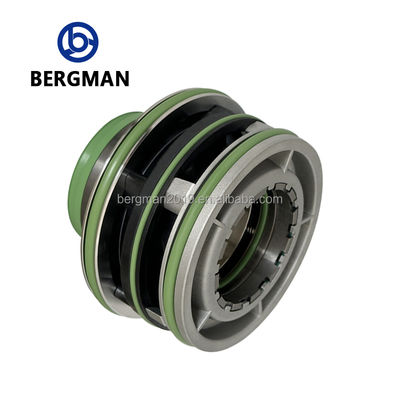

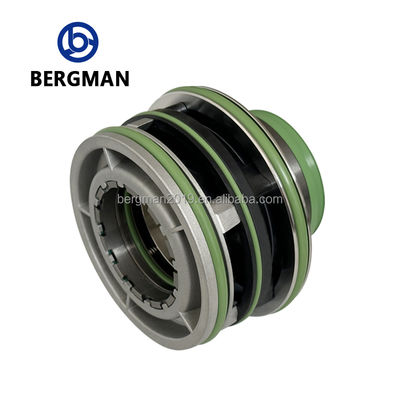

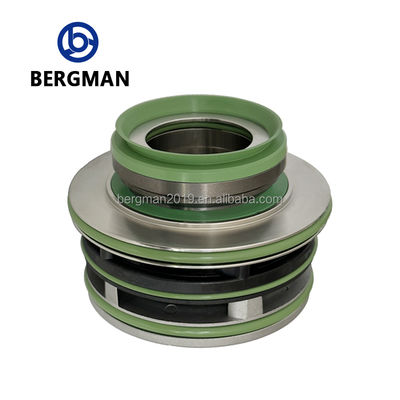

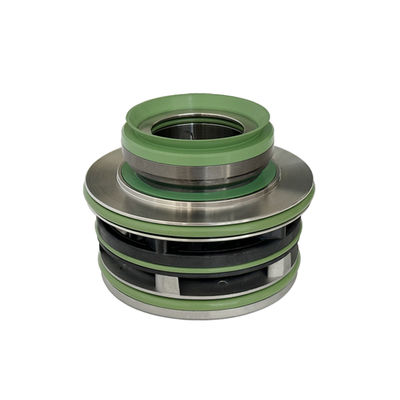

ISO9001-2015 Certified 60mm Flygt Pump Cartridge Mechanical Seal with Tungsten Carbide TC and VITON FPM
Contactez-moi pour des aperçus gratuits et des bons.
whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Si vous avez n'importe quel souci, nous fournissons l'aide en ligne de 24 heures.
xDétails sur le produit
| Taille | 60 mm | Matériau de visage | Carbure de tungstène TC |
|---|---|---|---|
| Matériau de siège | Carbure de tungstène TC | Matériau élastomère | VITON FPM |
| Pièces métalliques | SS316 Hastelloy C AM350 | Pression maximale | ≤ 1,5 MPA |
| Plage de température | -20 ° C-180 ° C | Vitesse de ligne maximale | ≤ 15m / s |
| Modèle | FGL-FS | Code HTS | 8484.20.00 |
| Modèles compatibles | 2610, 2620, 2630, 2640, 4610, 4620, 2660, 2670, 4630, 4640, 3153, 5100.211, 5100.220, 2100.211, 3171 | Conformité des normes | Din24960, ISO3069, EN12576, API682 |
| Type de joint | Sceaux mécaniques de cartouche | Matériau à cadre | Métal |
| Sceau secondaire | VITON FPM | ||
| Mettre en évidence | ISO9001-2015 Mechanical Seal,Tungsten Carbide TC Cartridge Mechanical Seal,VITON FPM Flygt Pump Seal |
||
Description de produit
Replace Flygt Pump Seal FS-60mm 3202 4670 4680 5100 Metal Frame Cartridge Mechanical Seal
Product Overview
Guangzhou Bergman Mechanical Seals Co., Ltd. specializes in high-quality mechanical seals for industrial applications, including this replacement seal for Flygt pumps.
| Specification | Details |
|---|---|
| Product Type | Mechanical Seal |

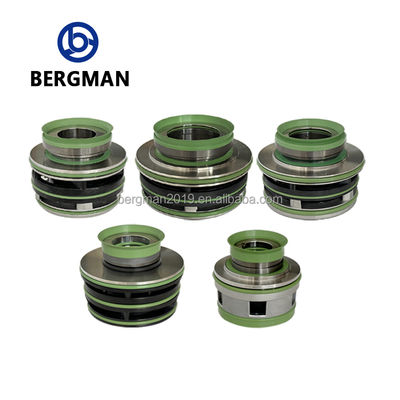

| Size Options | 20mm, 25mm, 35mm, 45mm, 60mm, 90mm |
| Brand | BERGMAN |
| Model | FGL-FS |
| Pressure Rating | ≤ 1.5MPa |
| Temperature Range | -20°C to 180°C (depends on O-ring material) |
| Face Material | Tungsten Carbide (TC) |
| Seat Material | Tungsten Carbide (TC) |
| Secondary Seal | VITON FPM |
| Metal Parts | SS316, Hastelloy C, AM350 |
| Certification | ISO9001-2015 |
| Service | OEM customization available |
Compatible Flygt Pump Models
This mechanical seal is compatible with numerous Flygt pump models including:
- 2610, 2620, 2630, 2640, 4610, 4620
- 2660, 2670, 4630, 4640, 3153, 5100.211
- 5100.220, 2100.211, 3171, 3152, 4650, 4660
- 5100.250, 5100.251, 5100.260, 5100.261
- 3202, 4670, 4680, 5100.300, 5100.310
- 5151.300, 5151.310, 3301, 5150.350, 5150-360
Key Features
- Complies with DIN24960, ISO3069, EN12576, and API682 standards
- Direct replacement for original equipment seals
- Available in various price points to meet different budget requirements
- 2,000+ square meter warehouse with large inventory for fast delivery
- Can replace Burgman, John Crane, AES and other major brand seals
- OEM and customized services available
- Factory-direct pricing with high quality standards
Materials & Construction
Our seals feature wear-resistant materials including:
- Tungsten carbide
- Silicon carbide
- Carbon graphite
- Alumina
- Rubber seals
- PTFE seals
- O-rings
Product Images
Company Profile
Guangzhou Bogman Mechanical Seals Co., Ltd. (formerly Guangzhou Yongfa Mechanical Seals Co., Ltd.) was established in 1996 and has over 20 years of experience in mechanical seal manufacturing. The company is ISO9001:2015 certified and offers a comprehensive range of sealing solutions including:
- Pump mechanical seals
- Axe mechanical seals
- Fluid mechanical seals
- Metal bellows mechanical seals
- Container mechanical seals
- Rubber bellows mechanical seals
- O-ring seals
- PTFE mechanical seals
- Various sealing materials including cemented carbide, silicon carbide, carbon graphite, and alumina
Facilities & Capabilities
- 2,000+ square meter warehouse with large inventory
- Modern machine tool equipment
- Dust-free workshop
- Advanced inspection equipment
- Assembly line operations
- Convenient location near Guangzhou Port, Shenzhen Port, and Foshan Port
Applications
Our mechanical seals are widely used in:
- Pipeline pumps
- Centrifugal pumps
- Sewage pumps
- Chemical pumps
For industries including:
- Petroleum
- Chemical
- Aerospace
- Pharmaceutical
- Food processing
- Agricultural irrigation
Frequently Asked Questions
Q: Are you a factory or a trader?
A: We are a production factory with our own international trade department.
Q: Where is your factory located?
A: Our factory is located in Guangzhou City, near Guangzhou Port and Shenzhen Port. Other ports can be selected based on customer needs.
Q: How many days is your delivery time?
A: For stock products, we can ship immediately after payment. For custom items, production typically takes 10-25 days depending on order quantity and type.
Q: Do you provide free samples?
A: We usually don't provide free samples, but sample costs can be refunded after order placement.
Q: What is your payment terms?
A: For stock items: 100% prepayment. For custom orders: 30% deposit, 70% before shipment. We accept T/T, BABY, Western Union, and Alibaba payment.
Q: Can you customize products not in your catalog?
A: Yes, we welcome OEM and custom product requests.
Contact Information
International Trade:
Li Wei: Mobile +86-15622176299
Yang Yingjie: WeChat/WhatsApp +86-15627223988
Yang Aijun: WeChat/WhatsApp +86-13602719849
Email: bergman168@outlook.com
